Spade Drill Insert

Catalog：

Replaceable Tip Drill

>> Messages
>> Contact

• Insert diameter from 9.5mm to 114mm.
• Multiple geometries and substrates.
• Various coating for different materials.
• Unique arc structure chip breaker.
• Precision back location slot.

keyword：Drilling,Boring

Detail

Spade drill insert, replaceable tip



Highlights of Mechin Spade Drill Insert

　　★ Multiple materials from HSS to solid carbide.

　　★ Self centering with symmetrical structure.

　　★ High precision back location groove.

　　★ Different geometries and coatings.



Advantages of Mechin Spade Drill Insert

　　★ Available for drilling all materials.

　　★ Higher precision holes after drilling.

　　★ Suitable for all drilling equipments.

　　★ More stable and longer insert life.



Recommended Materials

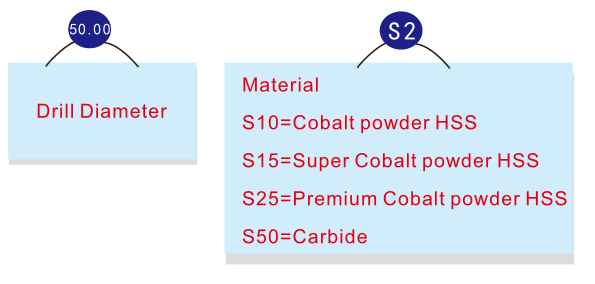

Product Naming of Spade drill insert

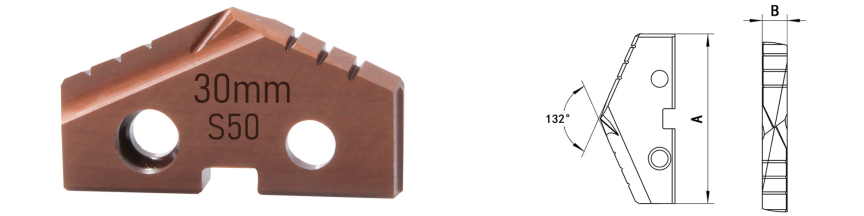

Overall Dimensions of Spade drill insert





Diameter    Thickness    B (mm/inch) Material Diameter    Thickness    B (mm/inch) Material
A (mm) S10 S15 S25 S50 A (mm) S10 S15 S25 S50
9.50  2.38          (2/32") ● ● ● ● 48.00  7.94         (5/16") ● ● ●
9.80  ● ● ● ● 49.00  ● ● ●
10.00  ● ● ● ● 50.00  ● ● ●
10.20  ● ● ● ● 51.00  ● ● ●
10.50  ● ● ● ● 52.00  ● ● ●
10.80  ● ● ● ● 53.00  ● ● ●
11.00  ● ● ● ● 54.00  ● ● ●
11.50  ● ● ● ● 55.00  ● ● ●
12.00  ● ● ● ● 56.00  ● ● ●
12.50  ● ● ● ● 57.00  ● ● ●
13.00  3.18           (1/8") ● ● ● ● 58.00  ● ● ●
13.50  ● ● ● ● 59.00  ● ● ●
14.00  ● ● ● ● 60.00  ● ● ●
14.50  ● ● ● ● 61.00  ● ● ●
15.00  ● ● ● ● 62.00  ● ● ●
15.50  ● ● ● ● 63.00  ● ● ●
16.00  ● ● ● ● 64.00  ● ● ●
16.50  ● ● ● ● 65.00  ● ● ●
17.00  ● ● ● ● 64.00  11.11       (7/16") ● ●
17.50  ● ● ● ● 65.00  ● ●
18.00  3.97         (5/32") ● ● ● ● 66.00  ● ●
18.50  ● ● ● ● 67.00  ● ●
19.00  ● ● ● ● 68.00  ● ●
19.50  ● ● ● ● 69.00  ● ●
20.00  ● ● ● ● 70.00  ● ●
20.50  ● ● ● ● 71.00  ● ●
21.00  ● ● ● ● 72.00  ● ●
22.00  ● ● ● ● 73.00  ● ●
23.00  ● ● ● ● 74.00  ● ●
24.00  ● ● ● ● 75.00  ● ●
25.00  4.76          (3/16") ● ● ● ● 76.00  ● ●
26.00  ● ● ● ● 77.00  ● ●
27.00  ● ● ● ● 78.00  ● ●
28.00  ● ● ● ● 79.00  ● ●
29.00  ● ● ● ● 80.00  ● ●
30.00  ● ● ● ● 82.00  ● ●
31.00  ● ● ● ● 84.00  ● ●
32.00  ● ● ● ● 86.00  ● ●
33.00  ● ● ● ● 88.00  ● ●
34.00  ● ● ● ● 89.00  ● ●
35.00  ● ● ● ● 90.00  ● ●
36.00  6.35           (1/4") ● ● ● ● 92.00  ● ●
37.00  ● ● ● ● 94.00  ● ●
38.00  ● ● ● ● 96.00  ● ●
39.00  ● ● ● ● 98.00  ● ●
40.00  ● ● ● ● 100.00  ● ●
41.00  ● ● ● ● 102.00  ● ●
42.00  ● ● ● ● 104.00  ● ●
43.00  ● ● ● ● 106.00  ● ●
44.00  ● ● ● ● 108.00  ● ●
45.00  ● ● ● ● 110.00  ● ●
46.00  ● ● ● ● 112.00  ● ●
47.00  ● ● ● ● 114.00  ● ●

S10: Cobalt powder HSS, S15: Super cobalt powder HSS, S25: Premium cobalt powder HSS, S50: Carbide
