Basic Shank and Extension for Modular Large Diameter Deep Hole Drill
Catalog：
• DXZ Maximum effective length can reach to 8 x Diameter.
• YXZ can increase extra 6 x Diameter effective drilling depth.
• Only need six shanks to satisfy all drill diamters 45~200mm.
• Internal coolant holes design.
• Flanged Weldon shank.
keyword：Drilling,Boring
Detail
DXZ Basic Flanged Shank and YXZ extension of Modular Large Diameter Deep Hole Drill
Highlights of Basic Shank and Extension
★ High strength alloy steel material.
★ Hollow connecting part with tough screws.
★ Ultra effective drilling depth.
★ Precision machining from shank to body.
Advantages of Basic Shank and Extension
★ Increased effective drilling depth.
★ Anti-vibration when make deep hole drilling.
★ Improved quality of large diameter and deep holes.
★ Reduced costs for drilling large diameter and deep holes.

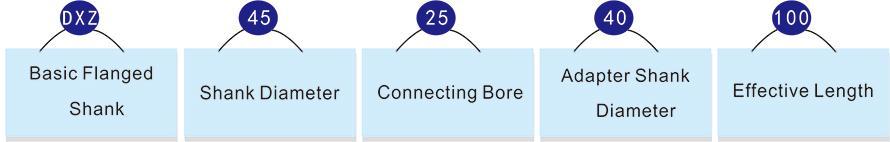

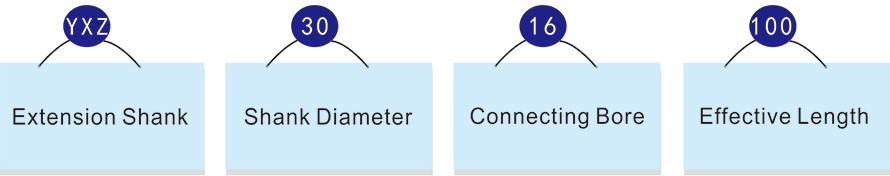

Product Naming for Basic Shank and Extension
Overall Dimensions of DXZ Basic Flanged Shank for Modular Large Diameter Deep Hole Drill
| DXZ Basic Flanged Shank | |||||||
| Code | D | D1 | D2 | L | L2 | M | Suitable Bore |
| DXZ-301632100 | 30 | 16 | 32 | 100 | 75 | M8x1 | φ45-φ55 |
| DXZ-301632150 | 30 | 16 | 32 | 150 | 75 | M8x1 | |
| DXZ-301632200 | 30 | 16 | 32 | 200 | 75 | M8x1 | |
| DXZ-301632250 | 30 | 16 | 32 | 250 | 75 | M8x1 | |
| DXZ-301632300 | 30 | 16 | 32 | 300 | 75 | M8x1 | |
| DXZ-301632350 | 30 | 16 | 32 | 350 | 75 | M8x1 | |
| DXZ-301632400 | 30 | 16 | 32 | 400 | 75 | M8x1 | |
| DXZ-452540100 | 45 | 25 | 40 | 100 | 75 | M10x1 | φ60-φ80 |
| DXZ-452540150 | 45 | 25 | 40 | 150 | 75 | M10x1 | |
| DXZ-452540200 | 45 | 25 | 40 | 200 | 75 | M10x1 | |
| DXZ-452540250 | 45 | 25 | 40 | 250 | 75 | M10x1 | |
| DXZ-452540300 | 45 | 25 | 40 | 300 | 75 | M10x1 | |
| DXZ-452540350 | 45 | 25 | 40 | 350 | 75 | M10x1 | |
| DXZ-452540400 | 45 | 25 | 40 | 400 | 75 | M10x1 | |
| DXZ-503040100 | 50 | 30 | 40 | 100 | 75 | M12x1 | φ85-φ95 |
| DXZ-503040150 | 50 | 30 | 40 | 150 | 75 | M12x1 | |
| DXZ-503040200 | 50 | 30 | 40 | 200 | 75 | M12x1 | |
| DXZ-503040250 | 50 | 30 | 40 | 250 | 75 | M12x1 | |
| DXZ-503040300 | 50 | 30 | 40 | 300 | 75 | M12x1 | |
| DXZ-503040350 | 50 | 30 | 40 | 350 | 75 | M12x1 | |
| DXZ-503040400 | 50 | 30 | 40 | 400 | 75 | M12x1 | |
| DXZ-583240100 | 58 | 32 | 40 | 100 | 75 | M12x1 | φ100-φ110 |
| DXZ-583240150 | 58 | 32 | 40 | 150 | 75 | M12x1 | |
| DXZ-583240200 | 58 | 32 | 40 | 200 | 75 | M12x1 | |
| DXZ-583240250 | 58 | 32 | 40 | 250 | 75 | M12x1 | |
| DXZ-583240300 | 58 | 32 | 40 | 300 | 75 | M12x1 | |
| DXZ-583240350 | 58 | 32 | 40 | 350 | 75 | M12x1 | |
| DXZ-583240400 | 58 | 32 | 40 | 400 | 75 | M12x1 | |
| DXZ-704050100 | 70 | 40 | 50 | 100 | 80 | M12x1 | φ115-φ135 |
| DXZ-704050150 | 70 | 40 | 50 | 150 | 80 | M12x1 | |
| DXZ-7040502000 | 70 | 40 | 50 | 200 | 80 | M12x1 | |
| DXZ-704050250 | 70 | 40 | 50 | 250 | 80 | M12x1 | |
| DXZ-704050300 | 70 | 40 | 50 | 300 | 80 | M12x1 | |
| DXZ-704050350 | 70 | 40 | 50 | 350 | 80 | M12x1 | |
| DXZ-704050400 | 70 | 40 | 50 | 400 | 80 | M12x1 | |
| DXZ-805050100 | 80 | 50 | 50 | 100 | 80 | M12x1 | φ140-φ195 |
| DXZ-805050150 | 80 | 50 | 50 | 150 | 80 | M12x1 | |
| DXZ-805050200 | 80 | 50 | 50 | 200 | 80 | M12x1 | |
| DXZ-805050250 | 80 | 50 | 50 | 250 | 80 | M12x1 | |
| DXZ-805050300 | 80 | 50 | 50 | 300 | 80 | M12x1 | |
| DXZ-805050350 | 80 | 50 | 50 | 350 | 80 | M12x1 | |
| DXZ-805050400 | 80 | 50 | 50 | 400 | 80 | M12x1 | |
| DXZ-805050450 | 80 | 50 | 50 | 450 | 80 | M12x1 | |
| DXZ-805050500 | 80 | 50 | 50 | 500 | 80 | M12x1 | |
Overall Dimensions of YXZ Extension Shank for Modular Large Diameter Deep Hole Drill
| Code | D | D1 | L | M | Suitable Bore |
| YXZ-3016100 | 30 | 16 | 100 | M8x1 | φ45-φ55 |
| YXZ-3016200 | 30 | 16 | 200 | M8x1 | |
| YXZ-3016300 | 30 | 16 | 300 | M8x1 | |
| YXZ-4525100 | 45 | 25 | 100 | M10x1 | φ60-φ80 |
| YXZ-4525200 | 45 | 25 | 200 | M10x1 | |
| YXZ-4525300 | 45 | 25 | 300 | M10x1 | |
| YXZ-5030100 | 50 | 30 | 100 | M12x1 | φ85-φ95 |
| YXZ-5030200 | 50 | 30 | 200 | M12x1 | |
| YXZ-5030300 | 50 | 30 | 300 | M12x1 | |
| YXZ-5832100 | 58 | 32 | 100 | M12x1 | φ100-φ110 |
| YXZ-5832200 | 58 | 32 | 200 | M12x1 | |
| YXZ-5832300 | 58 | 32 | 300 | M12x1 | |
| YZX-7040200 | 70 | 40 | 200 | M12x1 | φ115-φ135 |
| YZX-7040300 | 70 | 40 | 300 | M12x1 | |
| YZX-7040400 | 70 | 40 | 400 | M12x1 | |
| YXZ-8050200 | 80 | 50 | 200 | M12x1 | φ140-φ195 |
| YXZ-8050300 | 80 | 50 | 300 | M12x1 | |
| YXZ-8050400 | 80 | 50 | 400 | M12x1 |
