2D SPMG U Drill

Catalog：

Drilling

Indexable Insert Drill

>> Messages
>> Contact
• Effective drilling depth is 2 x Diameter.

• Drilling diameters are from 10mm to 60mm.
• Double twisted internal coolant holes.
• Match with TaeguTec SPMG insert and Mechin SPMG insert.
• Configure high strength screw and torx key.
• Multi function drilling design is available.
• Full series stocked.

keyword：Drilling,Boring

Detail

2D SPMG insert U drill, indexable insert drill



Highlights of Mechin u drill

　　★ Double helical cooling holes.

　　★ Two times heat treatment.

　　★ High strength alloy steel drill holder.

　　★ High strength screws and torx keys.



Advantages of Mechin u drill

　　★ Much better chip evacuation.

　　★ Longer drilling life span.

　　★ Higher rigidity and toughness.

　　★ Faster penetration rate.



Recommended Materials

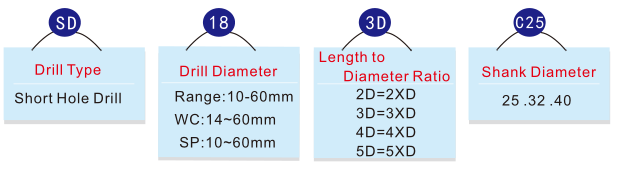

Product Naming of Mechin SP Series U Drills

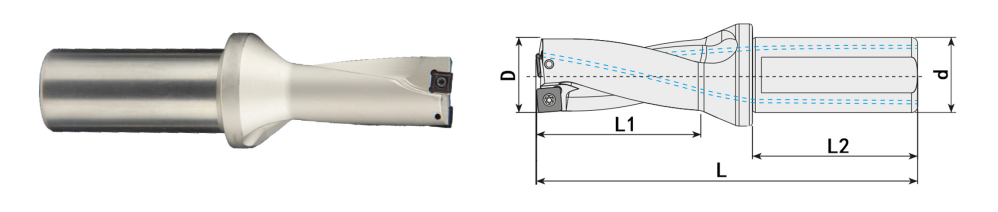

Overall Dimensions of 2D SP Insert U drills





Code D L1 L L2 d Insert Screw Torx Key
SP10-2D-C20 10 22 83 50 20 SPMT04T102 M1.8*4 T6
SP10.5-2D-C20 10.5 23 84
SP11-2D-C20 11 24 85
SP11.5-2D-C20 11.5 25 86
SP12-2D-C20 12 26 87
SP12.5-2D-C20 12.5 27 96 50 20 SPMT050204 M2.2*5
SP13-2D-C20 13 28 97
SP13.5-2D-C20 13.5 29 98
SP14-2D-C25 14 30 107 56 25
SP14.5-2D-C25 14.5 31 108
SP15-2D-C25 15 32 109
SP15.5-2D-C25 15.5 33 110
SP16-2D-C25 16 34 111 SPMT060204 M2.2*6 T7
SP16.5-2D-C25 16.5 35 112
SP17-2D-C25 17 36 111
SP17.5-2D-C25 17.5 37 112
SP18-2D-C25 18 38 112
SP18.5-2D-C25 18.5 39 113
SP19-2D-C25 19 40 113
SP19.5-2D-C25 19.5 41 114
SP20-2D-C25 20 42 117
SP20.5-2D-C25 20.5 43 118
SP21-2D-C25 21 44 119
SP21.5-2D-C25 21.5 45 120
SP22-2D-C25 22 46 121 SPMT07T308 M2.5*8 T8
SP22.5-2D-C25 22.5 47 122
SP23-2D-C25 23 48 123
SP23.5-2D-C25 23.5 49 124
SP24-2D-C25 24 50 125
SP24.5-2D-C25 24.5 51 126
SP25-2D-C32 25 52 137 60 32
SP25.5-2D-C32 25.5 53 138
SP26-2D-C32 26 54 139
SP26.5-2D-C32 26.5 55 140
SP27-2D-C32 27 56 141
SP27.5-2D-C32 27.5 57 142
SP28-2D-C32 28 58 143 SPMT090408 M3.5*10 T15
SP28.5-2D-C32 28.5 59 144
SP29-2D-C32 29 60 145
SP29.5-2D-C32 29.5 61 146
SP30-2D-C32 30 62 144
SP30.5-2D-C32 30.5 63 145
SP31-2D-C32 31 64 146
SP31.5-2D-C32 31.5 65 147
SP32-2D-C32 32 66 148
SP32.5-2D-C32 32.5 67 149
SP33-2D-C32 33 68 150
SP33.5-2D-C32 33.5 69 151
SP34-2D-C32 34 70 156 SPMT110408 M4*10
SP34.5-2D-C32 34.5 71 157
SP35-2D-C32 35 72 158
SP35.5-2D-C32 35.5 73 159
SP36-2D-C32 36 74 160
SP36.5-2D-C32 36.5 75 161
SP37-2D-C32 37 76 161
SP37.5-2D-C32 37.5 77 162
SP38-2D-C32 38 78 163
SP38.5-2D-C32 38.5 79 164
SP39-2D-C32 39 80 165
SP39.5-2D-C32 39.5 81 166
SP40-2D-C32 40 82 167
SP41-2D-C32 41 84 169
SP42-2D-C40 42 86 179 70 40 SPMT140512 M5*12 T20
SP43-2D-C40 43 88 181
SP44-2D-C40 44 90 186
SP45-2D-C40 45 92 188
SP46-2D-C40 46 94 191
SP47-2D-C40 47 96 193
SP48-2D-C40 48 98 195
SP49-2D-C40 49 100 197
SP50-2D-C40 50 102 199
SP51-2D-C40 51 104 201 SPMT07T308 M2.5*8 T8
SP52-2D-C40 52 106 203
SP53-2D-C40 53 108 205
SP54-2D-C40 54 110 207
SP55-2D-C40 55 112 209
SP56-2D-C40 56 114 211 SPMT090408 M3.5*10 T15
SP57-2D-C40 57 116 213
SP58-2D-C40 58 118 215
SP59-2D-C40 59 120 218
SP60-2D-C40 60 122 220
