5D SPMG U Drill

Catalog：

Indexable Insert Drill

>> Messages

>> Contact

• Effective drilling depth is 5 x Diameter.
• Drilling diameters are from 10mm to 60mm.
• Double twisted internal coolant holes.
• Match with TaeguTec SPMG insert and Mechin SPMG insert.
• Configure high strength screw and torx key.
• Multi function drilling design is available.
• Full series stocked.

keyword：Drilling,Boring

Detail

5D SPMG insert U drill, indexable insert drill

Highlights of Mechin u drill

　　★ Double helical cooling holes.

　　★ Two times heat treatment.

　　★ High strength alloy steel drill holder.

　　★ High strength screws and torx keys.

Advantages of Mechin u drill

　　★ Much better chip evacuation.

　　★ Longer drilling life span.

　　★ Higher rigidity and toughness.

　　★ Faster penetration rate.

Recommended Materials

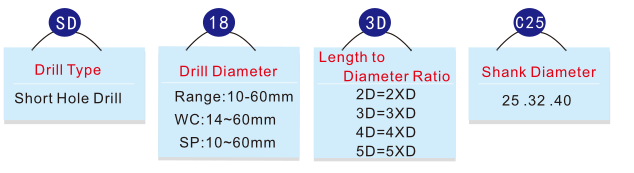

Product Naming of Mechin SP Series U Drills

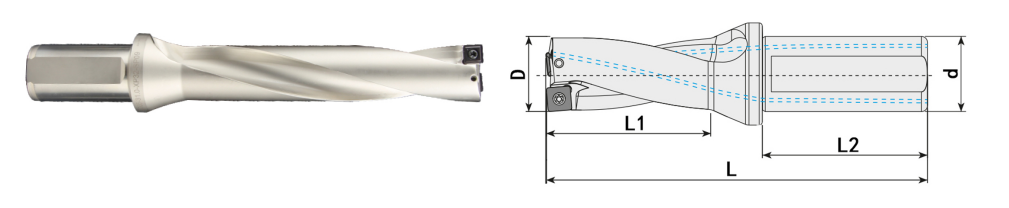

Overall Dimensions of 5D SP Insert U drills

Code	D	L1	L	L2	d	Insert	Screw	Torx Key
SP12.5-5D-C20	12.5	64.5	133.5	50	20	SPMT050204	M2.2*5	T6
SP13-5D-C20	13	67	136
SP13.5-5D-C20	13.5	69.5	138.5
SP14-5D-C25	14	72	149	56	25
SP14.5-5D-C25	14.5	74.5	151.5
SP15-5D-C25	15	77	154
SP15.5-5D-C25	15.5	79.5	156.5
SP16-5D-C25	16	82	159			SPMT060204	M2.2*6	T7
SP16.5-5D-C25	16.5	84.5	161.5
SP17-5D-C25	17	87	162
SP17.5-5D-C25	17.5	89.5	164.5
SP18-5D-C25	18	92	166
SP18.5-5D-C25	18.5	94.5	168.5
SP19-5D-C25	19	97	170
SP19.5-5D-C25	19.5	99.5	172.5
SP20-5D-C25	20	102	177
SP20.5-5D-C25	20.5	104.5	179.5
SP21-5D-C25	21	107	182
SP21.5-5D-C25	21.5	109.5	184.5
SP22-5D-C25	22	112	187			SPMT07T308	M2.5*8	T8
SP22.5-5D-C25	22.5	114.5	189.5
SP23-5D-C25	23	117	192
SP23.5-5D-C25	23.5	119.5	194.5
SP24-5D-C25	24	122	197
SP24.5-5D-C25	24.5	124.5	199.5
SP25-5D-C32	25	127	212	60	32
SP25.5-5D-C32	25.5	129.5	214.5
SP26-5D-C32	26	132	217
SP26.5-5D-C32	26.5	134.5	219.5
SP27-5D-C32	27	137	222
SP27.5-5D-C32	27.5	139.5	224.5
SP28-5D-C32	28	142	227			SPMT090408	M3.5*10	T15
SP28.5-5D-C32	28.5	144.5	229.5
SP29-5D-C32	29	147	232
SP29.5-5D-C32	29.5	149.5	234.5
SP30-5D-C32	30	152	234
SP30.5-5D-C32	30.5	154.5	236.5
SP31-5D-C32	31	157	239
SP31.5-5D-C32	31.5	159.5	241.5
SP32-5D-C32	32	162	244
SP32.5-5D-C32	32.5	164.5	246.5
SP33-5D-C32	33	167	249
SP33.5-5D-C32	33.5	169.5	251.5
SP34-5D-C32	34	172	258			SPMT110408	M4*10	T15
SP34.5-5D-C32	34.5	174.5	260.5
SP35-5D-C32	35	177	263
SP35.5-5D-C32	35.5	144	230
SP36-5D-C32	36	146	232
SP36.5-5D-C32	36.5	148	234
SP37-5D-C32	37	150	235
SP37.5-5D-C32	37.5	152	237
SP38-5D-C32	38	154	239
SP38.5-5D-C32	38.5	156	241
SP39-5D-C32	39	158	243
SP39.5-5D-C32	39.5	160	245
SP40-5D-C32	40	162	247
SP41-5D-C32	41	166	251
SP42-5D-C40	42	170	263	70	40	SPMT140512	M5*12	T20
SP43-5D-C40	43	174	267
SP44-5D-C40	44	178	274
SP45-5D-C40	45	182	278
SP46-5D-C40	46	186	283
SP47-5D-C40	47	190	287
SP48-5D-C40	48	194	291
SP49-5D-C40	49	198	295
SP50-5D-C40	50	202	299
SP51-5D-C40	51	206	303			SPMT07T308	M2.5*8	T8
SP52-5D-C40	52	210	307
SP53-5D-C40	53	214	311
SP54-5D-C40	54	218	315
SP55-5D-C40	55	222	319
SP56-5D-C40	56	226	323			SPMT090408	M3.5*10	T15
SP57-5D-C40	57	230	327
SP58-5D-C40	58	234	331
SP59-5D-C40	59	238	336
SP60-5D-C40	60	242	340
