3D SPMG U Drill

Catalog：

Indexable Insert Drill

>> Messages
>> Contact
• Effective drilling depth is 3 x Diameter.
• Drilling diameters are from 10mm to 60mm.
• Double twisted internal coolant holes.
• Match with TaeguTec SPMG insert and Mechin SPMG insert.
• Configure high strength screw and torx key.
• Multi function drilling design is available.
• Full series stocked.

keyword：Drilling,Boring

Detail

3D SPMG insert U drill, indexable insert drill



Highlights of Mechin u drill

　　★ Double helical cooling holes.

　　★ Two times heat treatment.

　　★ High strength alloy steel drill holder.

　　★ High strength screws and torx keys.



Advantages of Mechin u drill

　　★ Much better chip evacuation.

　　★ Longer drilling life span.

　　★ Higher rigidity and toughness.

　　★ Faster penetration rate.



Recommended Materials

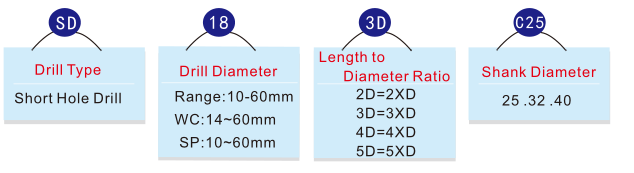

Product Naming of Mechin SP Series U Drills

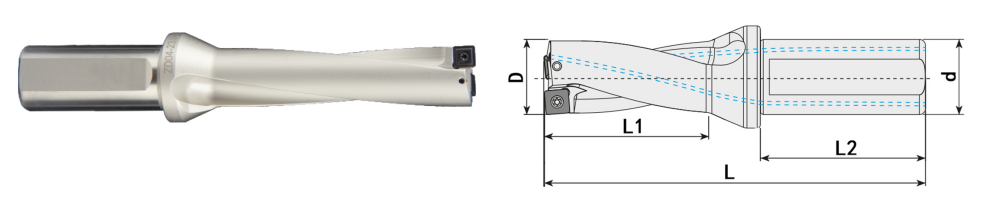

Overall Dimensions of 3D SP Insert U drills





Code D L1 L L2 d Insert Screw Torx Key
SP10-3D-C20 10 32 93 50 20 SPMT04T102 M1.8*4 T6
SP10.5-3D-C20 10.5 33.5 94.5
SP11-3D-C20 11 35 96
SP11.5-3D-C20 11.5 36.5 97.5
SP12-3D-C20 12 38 99
SP12.5-3D-C20 12.5 39.5 108.5 50 20 SPMT050204 M2.2*5
SP13-3D-C20 13 41 110
SP13.5-3D-C20 13.5 42.5 111.5
SP14-3D-C25 14 44 121 56 25
SP14.5-3D-C25 14.5 45.5 122.5
SP15-3D-C25 15 47 124
SP15.5-3D-C25 15.5 48.5 125.5
SP16-3D-C25 16 50 127 SPMT060204 M2.2*6 T7
SP16.5-3D-C25 16.5 51.5 128.5
SP17-3D-C25 17 53 128
SP17.5-3D-C25 17.5 54.5 129.5
SP18-3D-C25 18 56 130
SP18.5-3D-C25 18.5 57.5 131.5
SP19-3D-C25 19 59 132
SP19.5-3D-C25 19.5 60.5 133.5
SP20-3D-C25 20 62 137
SP20.5-3D-C25 20.5 63.5 138.5
SP21-3D-C25 21 65 140
SP21.5-3D-C25 21.5 66.5 141.5
SP22-3D-C25 22 68 143 SPMT07T308 M2.5*8 T8
SP22.5-3D-C25 22.5 69.5 144.5
SP23-3D-C25 23 71 146
SP23.5-3D-C25 23.5 72.5 147.5
SP24-3D-C25 24 74 149
SP24.5-3D-C25 24.5 75.5 150.5
SP25-3D-C32 25 77 162 60 32
SP25.5-3D-C32 25.5 78.5 163.5
SP26-3D-C32 26 80 165
SP26.5-3D-C32 26.5 81.5 166.5
SP27-3D-C32 27 83 168
SP27.5-3D-C32 27.5 84.5 169.5
SP28-3D-C32 28 86 171 SPMT090408 M3.5*10 T15
SP28.5-3D-C32 28.5 87.5 172.5
SP29-3D-C32 29 89 174
SP29.5-3D-C32 29.5 90.5 175.5
SP30-3D-C32 30 92 174
SP30.5-3D-C32 30.5 93.5 175.5
SP31-3D-C32 31 95 177
SP31.5-3D-C32 31.5 96.5 178.5
SP32-3D-C32 32 98 180
SP32.5-3D-C32 32.5 99.5 181.5
SP33-3D-C32 33 101 183
SP33.5-3D-C32 33.5 102.5 184.5
SP33-3D-C32 33 101 183 SPMT110408 M4*10
SP33.5-3D-C32 33.5 102.5 184.5
SP34-3D-C32 34 104 191.5
SP34.5-3D-C32 34.5 105.5 191.5
SP35-3D-C32 35 107 193
SP35.5-3D-C32 35.5 108.5 194.5
SP36-3D-C32 36 110 196
SP36.5-3D-C32 36.5 111.5 197.5
SP37-3D-C32 37 113 198
SP37.5-3D-C32 37.5 114.5 199.5
SP38-3D-C32 38 116 201
SP38.5-3D-C32 38.5 117.5 202.5
SP39-3D-C32 39 119 204
SP39.5-3D-C32 39.5 120.5 205.5
SP40-3D-C32 40 122 207
SP41-3D-C32 41 125 210
SP42-3D-C40 42 128 221 70 40 SPMT140512 M5*12 T20
SP43-3D-C40 43 131 224
SP44-3D-C40 44 134 230
SP45-3D-C40 45 137 233
SP46-3D-C40 46 140 237
SP47-3D-C40 47 143 240
SP48-3D-C40 48 146 243
SP49-3D-C40 49 149 246
SP50-3D-C40 50 152 249
SP51-3D-C40 51 155 252 SPMT07T308 M2.5*8 T8
SP52-3D-C40 52 158 255
SP53-3D-C40 53 161 258
SP54-3D-C40 54 164 261
SP55-3D-C40 55 167 264
SP56-3D-C40 56 170 267 SPMT090408 M3.5*10 T15
SP57-3D-C40 57 173 270
SP58-3D-C40 58 176 273
SP59-3D-C40 59 179 277
SP60-3D-C40 60 182 280
