SD Weldon Shank Spade Drill

Catalog：

Replaceable Tip Drill

>> Messages

>> Contact

• Drilling diameters are from 9.5mm to 114.48mm.
• Max. effective drilling depth can be over 20 x Diameter.
• Straight and helical groove optional.
• 8pcs holders can match full 9.5mm to 114.48mm inserts.
• Double internal coolant holes.
• Flanged weldon shank.

keyword：Drilling,Boring

Detail

SD Weldon shank spade drill, replaceable tip drill

Highlights of Mechin Weldon Shank Spade Drill

　　★ High strength alloy steel tool holder.

　　★ Long overhang can be more than 20 x Diameter.

　　★ Simple but robust connecting structure.

　　★ High precision connecting dimensions.

　　★ Holder made by twice heat treatment.

Advantages of Mechin Weldon Shank Spade Drill

　　★ Suit for all kinds of drilling equipments.

　　★ Hole tolerance within 0.05mm after drilling.

　　★ Can make deep hole drilling.

　　★ Easy to change tips without re-grinding.

　　★ Much lower torque demands.

Recommended Materials

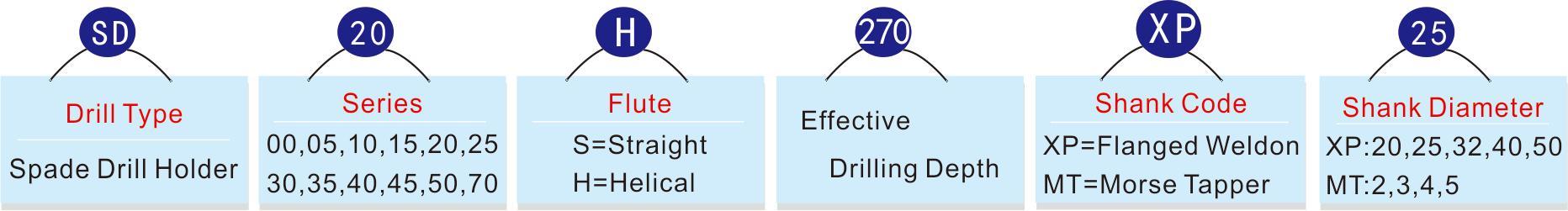

Product Naming of Mechin SD Series Spade drill

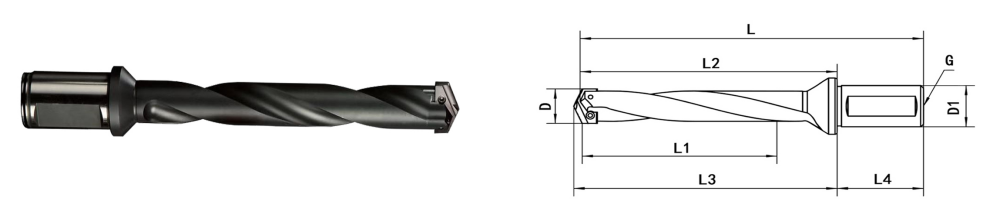

Overall Dimensions of SD Weldon shank spade drill

Y0 Series (φ9.5-φ11.4)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SDY0H-19-XP16	19	47.6	50	95.6	16	48	1/16	M2.5*6	T8
SDY0H-32-XP20	32	61.1	63.5	111.1	20	50	1/8	M2.5*6	T8
SDY0H-60-XP20	60	89.7	92.1	139.7	20	50	1/8	M2.5*6	T8
SDY0H-86-XP20	86	115.4	117.8	165.4	20	50	1/8	M2.5*6	T8
SDY0H-111-XP20	111	140.5	142.9	190.5	20	50	1/8	M2.5*6	T8
SDY0H-222-XP20	222	251.7	254.1	301.7	20	50	1/8	M2.5*6	T8
SDY0H-290-XP20	290	319.9	322.3	369.9	20	50	1/8	M2.5*6	T8
Z0 Series (φ11.5-φ12.9)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SDZ0H-19-XP16	19	47.6	50	95.6	16	48	1/16	M2.5*6	T8
SDZ0H-32-XP20	32	61.1	63.5	111.1	20	50	1/8	M2.5*6	T8
SDZ0H-60-XP20	60	89.7	92.1	139.7	20	50	1/8	M2.5*6	T8
SDZ0H-86-XP20	86	115.4	117.8	165.4	20	50	1/8	M2.5*6	T8
SDZ0H-111-XP20	111	140.5	142.9	190.5	20	50	1/8	M2.5*6	T8
SDZ0H-222-XP20	222	251.7	254.1	301.7	20	50	1/8	M2.5*6	T8
SDY0H-290-XP20	290	319.9	322.3	369.9	20	50	1/8	M2.5*6	T8
00 Series (φ13.0-φ17.5)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD00H-23-XP20	22	47.6	50.4	97.6	20	50	1/8	M2.5*6	T8
SD00H-35-XP20	35	63.5	66.3	113.5	20	50	1/8	M2.5*6	T8
SD00H-64-XP20	63	92.1	94.9	142.1	20	50	1/8	M2.5*6	T8
SD00H-114-XP20	114	142.9	145.7	192.9	20	50	1/8	M2.5*6	T8
SD00H-178-XP20	178	206.4	209.1	256.4	20	50	1/8	M2.5*6	T8
SD00H-240-XP20	240	268.6	271.3	318.6	20	50	1/8	M2.5*6	T8
SD00H-295-XP20	295	323.9	326.7	373.9	20	50	1/8	M2.5*6	T8
SD00H-387-XP20	387	416	418.8	466	20	50	1/8	M2.5*6	T8
05 Series (φ15.5-φ17.5)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD05H-23-XP20	22	47.6	50.4	97.6	20	50	1/8	M2.5*6	T8
SD05H-35-XP20	35	63.5	66.3	113.5	20	50	1/8	M2.5*6	T8
SD05H-64-XP20	63	92.1	94.9	142.1	20	50	1/8	M2.5*6	T8
SD05H-114-XP20	114	142.9	145.7	192.9	20	50	1/8	M2.5*6	T8
SD05H-178-XP20	178	206.4	209.1	256.4	20	50	1/8	M2.5*6	T8
SD05H-240-XP20	240	268.6	271.3	318.6	20	50	1/8	M2.5*6	T8
SD05H-295-XP20	295	323.9	326.7	373.9	20	50	1/8	M2.5*6	T8
SD05H-387-XP20	387	416	418.8	466	20	50	1/8	M2.5*6	T8
10 Series (φ17.6-φ24.4)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD10H-48-XP25	48	75.8	79.4	131.8	25	56	1/8	M3*8	T8
SD10H-67-XP25	67	107.2	110.7	163.1	25	56	1/8	M3*8	T8
SD10H-118-XP25	118	154.8	158.4	210.8	25	56	1/8	M3*8	T8
SD10H-168-XP25	168	205.6	209.2	261.6	25	56	1/8	M3*8	T8
SD10H-218-XP25	218	255.3	258.9	311.3	25	56	1/8	M3*8	T8
SD10H-270-XP25	270	307.2	310.8	363.2	25	56	1/8	M3*8	T8
SD10H-365-XP25	365	402.2	405.8	458.2	25	56	1/8	M3*8	T8
SD10H-457-XP25	457	494.5	498.1	550.5	25	56	1/8	M3*8	T8
SD10H-569-XP25	569	602.5	606.1	658.5	25	56	1/8	M3*8	T8
15 Series (φ22.0-φ24.4)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD15H-57-XP25	57	88.5	92.1	144.5	25	56	1/8	M3*8	T8
SD15H-67-XP25	67	107.2	110.7	163.1	25	56	1/8	M3*8	T8
SD15H-118-XP25	118	154.8	158.4	210.8	25	56	1/8	M3*8	T8
SD15H-168-XP25	168	205.6	209.2	261.6	25	56	1/8	M3*8	T8
SD15H-218-XP25	218	255.3	258.9	311.3	25	56	1/8	M3*8	T8
SD15H-270-XP25	270	307.2	310.8	363.2	25	56	1/8	M3*8	T8
SD15H-365-XP25	365	402.2	405.8	458.2	25	56	1/8	M3*8	T8
SD15H-457-XP25	457	494.5	498.1	550.5	25	56	1/8	M3*8	T8
SD15H-569-XP25	569	602.5	606.1	658.5	25	56	1/8	M3*8	T8
20 Series (φ24.5-φ35.0)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD20H-57-XP32	57	88.5	92.1	148.5	32	60	1/4	M3.5*10	T15
SD20H-86-XP32	86	128.6	132.2	188.6	32	60	1/4	M3.5*10	T15
SD20H-137-XP32	137	179.4	183	239.4	32	60	1/4	M3.5*10	T15
SD20H-187-XP32	187	230.2	233.8	290.2	32	60	1/4	M3.5*10	T15
SD20H-237-XP32	237	279.9	283.5	339.9	32	60	1/4	M3.5*10	T15
SD20H-289-XP32	289	331.8	335.4	391.8	32	60	1/4	M3.5*10	T15
SD20H-340-XP32	340	382.8	386.4	442.8	32	60	1/4	M3.5*10	T15
SD20H-400-XP32	400	442.8	446.4	502.8	32	60	1/4	M3.5*10	T15
SD20H-511-XP32	511	554.1	557.7	614.1	32	60	1/4	M3.5*10	T15
SD20H-692-XP32	692	735.1	738.7	795.1	32	60	1/4	M3.5*10	T15
25 Series (φ30.0-φ35.0)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD25H-86-XP32	86	123.4	127	183.4	32	60	1/4	M3.5*10	T15
SD25H-92-XP32	92	128.6	132.2	188.6	32	60	1/4	M3.5*10	T15
SD25H-137-XP32	137	179.4	183	239.4	32	60	1/4	M3.5*10	T15
SD25H-187-XP32	187	230.2	233.8	290.2	32	60	1/4	M3.5*10	T15
SD25H-237-XP32	237	279.9	283.5	339.9	32	60	1/4	M3.5*10	T15
SD25H-289-XP32	289	331.8	335.4	391.8	32	60	1/4	M3.5*10	T15
SD25H-340-XP32	340	382.8	386.4	442.8	32	60	1/4	M3.5*10	T15
SD25H-400-XP32	400	442.8	446.4	502.8	32	60	1/4	M3.5*10	T15
SD25H-511-XP32	511	554.1	557.7	614.1	32	60	1/4	M3.5*10	T15
SD25H-692-XP32	692	735.1	738.7	795.1	32	60	1/4	M3.5*10	T15
30 Series (φ35.1-φ47.9)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD30H-76-XP40	76	125	129.8	195	40	70	1/4	M5*10	T20
SD30H-121-XP40	121	173	177.8	243	40	70	1/4	M5*10	T20
SD30H-165-XP40	165	217.5	222.3	287.5	40	70	1/4	M5*10	T20
SD30H-210-XP40	210	261.9	266.7	331.9	40	70	1/4	M5*10	T20
SD30H-260-XP40	260	312.3	317.1	382.3	40	70	1/4	M5*10	T20
SD30H-349-XP40	349	401.6	406.4	471.6	40	70	1/4	M5*10	T20
SD30H-454-XP40	454	506.5	511.3	576.5	40	70	1/4	M5*10	T20
SD30H-559-XP40	559	611.1	615.9	681.1	40	70	1/4	M5*10	T20
SD30H-787-XP40	787	839.7	844.5	909.7	40	70	1/4	M5*10	T20
35 Series (φ42.0-φ47.9)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD35H-76-XP40	76	125	129.8	195	40	70	1/4	M5*10	T20
SD35H-121-XP40	121	173	177.8	243	40	70	1/4	M5*10	T20
SD35H-165-XP40	165	217.5	222.3	287.5	40	70	1/4	M5*10	T20
SD35H-210-XP40	210	261.9	266.7	331.9	40	70	1/4	M5*10	T20
SD35H-260-XP40	260	312.3	317.1	382.3	40	70	1/4	M5*10	T20
SD35H-349-XP40	349	401.6	406.4	471.6	40	70	1/4	M5*10	T20
SD30H-454-XP40	454	506.5	511.3	576.5	40	70	1/4	M5*10	T20
SD35H-559-XP40	559	611.1	615.9	681.1	40	70	1/4	M5*10	T20
SD35H-787-XP40	787	839.7	844.5	909.7	40	70	1/4	M5*10	T20
40 Series (φ48.0-φ65.28)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD40H-130-XP40	130	179.4	184.2	249.4	40	70	1/4	M5*15	T20
SD40H-232-XP40	232	281	285.8	351	40	70	1/4	M5*15	T20
SD40H-350-XP40	350	399.2	404	469.2	40	70	1/4	M5*15	T20
SD40H-422-XP40	422	471.5	476.3	541.5	40	70	1/4	M5*15	T20
SD40H-525-XP40	524	574.2	579	644.2	40	70	1/4	M5*15	T20
SD40H-625-XP40	625	674.7	679.5	744.7	40	70	1/4	M5*15	T20
SD40H-879-XP40	879	928.7	933.5	998.7	40	70	1/4	M5*15	T20
45 Series (φ56.0-φ65.28)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD45H-130-XP40	130	179.4	184.2	249.4	40	70	1/4	M5*15	T20
SD45H-232-XP40	232	281	285.8	351	40	70	1/4	M5*15	T20
SD45H-350-XP40	350	399.2	404	469.2	40	70	1/4	M5*15	T20
SD45H-422-XP40	422	471.5	476.3	541.5	40	70	1/4	M5*15	T20
SD45H-525-XP40	525	574.2	579	644.2	40	70	1/4	M5*15	T20
SD45H-625-XP40	625	674.7	679.5	744.7	40	70	1/4	M5*15	T20
SD45H-879-XP40	879	928.7	933.5	998.7	40	70	1/4	M5*15	T20
50 Series (φ65.3-φ89.08)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD50H-171-XP50	171	235	240	315	50	80	1/4	M6*15	T25
SD50H-350-XP50	350	414	419	494	50	80	1/4	M6*15	T25
SD50H-464-XP50	464	528	553	608	50	80	1/4	M6*15	T25
SD50H-660-XP50	660	724	729	804	50	80	1/4	M6*15	T25
SD50H-800-XP50	800	984	989	1064	50	80	1/4	M6*15	T25
70 Series (φ89.1-φ114.48)
Code	L1	L2	L3	L	D1	L4	G	Screw	Torx Key
SD70H-200-XP50	200	275	280	355	50	80	1/4	M6*15	T25
SD70H-400-XP50	400	475	480	555	50	80	1/4	M6*15	T25
SD70H-800-XP50	800	875	880	955	50	80	1/4	M6*15	T25
