2D WCMT U Drill

Catalog：

Indexable Insert Drill

>> Messages
>> Contact
• Effective drilling depth is 2 x Diameter.
• Drilling diameters are from 14mm to 60mm.
• Double twisted internal coolant holes.
• Match with Sumitomo WCMX/WCMT insert and Mechin WCMT insert.
• Configure high strength screw and torx key.
• Multi function drilling design is available.
• Full series stocked.

keyword：Drilling,Boring

Detail

2D WCM* insert U drill, indexable insert drill



Highlights of Mechin u drill

　　★ Double helical cooling holes.

　　★ Two times heat treatment.

　　★ High strength alloy steel drill holder.

　　★ High strength screws and torx keys.



Advantages of Mechin u drill

　　★ Much better chip evacuation.

　　★ Longer drilling life span.

　　★ Higher rigidity and toughness.

　　★ Faster penetration rate.



Recommended Materials







Product Naming of Mechin WC Series U Drills

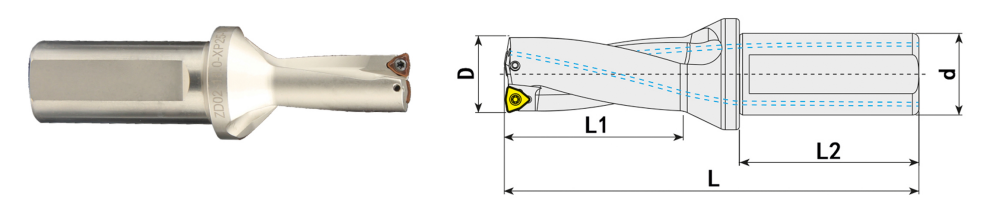

Overall Dimensions of 2D WC Insert U drills





Code D L1 L L2 d Insert Screw Torx Key
SD14-2D-C25 14 30 107 56 25 WCMT030208 M2.5*5 T8
SD14.5-2D-C25 14.5 31 108 56 25 WCMT030208 M2.5*6 T8
SD15-2D-C25 15 32 107
SD15.5-2D-C25 15.5 33 108
SD16-2D-C25 16 34 109
SD16.5-2D-C25 16.5 35 110
SD17-2D-C25 17 36 111
SD17.5-2D-C25 17.5 37 112
SD18-2D-C25 18 38 113
SD18.5-2D-C25 18.5 39 114
SD19-2D-C25 19 40 113
SD19.5-2D-C25 19.5 41 114
SD20-2D-C25 20 42 115.5 WCMT040208
SD20.5-2D-C25 20.5 43 117
SD21-2D-C25 21 44 118
SD21.5-2D-C25 21.5 45 119
SD22-2D-C25 22 46 120
SD22.5-2D-C25 22.5 47 121
SD23-2D-C25 23 48 122
SD23.5-2D-C25 23.5 49 123
SD24-2D-C25 24 50 124 WCMT050308 M3*8
SD24.5-2D-C25 24.5 51 125
SD25-2D-C32 25 52 136 60 32
SD25.5-2D-C32 25.5 53 137
SD26-2D-C32 26 54 138
SD26.5-2D-C32 26.5 55 139
SD27-2D-C32 27 56 140
SD27.5-2D-C32 27.5 57 141
SD28-2D-C32 28 58 142
SD28.5-2D-C32 28.5 59 143
SD29-2D-C32 29 60 144
SD29.5-2D-C32 29.5 61 145
SD30-2D-C32 30 62 146
SD30.5-2D-C32 30.5 63 146
SD31-2D-C32 31 64 147 WCMT06T308 M3.5*10 T15
SD31.5-2D-C32 31.5 65 147
SD32-2D-C32 32 66 149
SD32.5-2D-C32 32.5 67 149
SD33-2D-C32 33 68 151
SD33.5-2D-C32 33.5 69 151
SD34-2D-C32 34 70 152
SD34.5-2D-C32 34.5 71 152
SD35-2D-C32 35 72 155
SD35.5-2D-C32 35.5 73 155
SD36-2D-C32 36 74 157
SD36.5-2D-C32 36.5 75 158
SD37-2D-C32 37 76 159
SD37.5-2D-C32 37.5 77 161
SD38-2D-C32 38 78 158.5
SD38.5-2D-C32 38.5 79 159.5
SD39-2D-C32 39 80 162
SD39.5-2D-C32 39.5 81 160
SD40-2D-C32 40 82 160
SD41-2D-C32 41 84 164
SD42-2D-C40 42 86 181 70 40 WCMT080412 M4*10
SD43-2D-C40 43 88 183
SD44-2D-C40 44 90 185
SD45-2D-C40 45 92 187
SD46-2D-C40 46 94 189
SD47-2D-C40 47 96 191
SD48-2D-C40 48 98 193
SD49-2D-C40 49 100 195
SD50-2D-C40 50 102 197
SD51-2D-C40 51 104 199
SD52-2D-C40 52 106 201
SD53-2D-C40 53 108 203
SD54-2D-C40 54 110 205
SD55-2D-C40 55 112 207
SD56-2D-C40 56 114 209
SD57-2D-C40 57 116 211
SD58-2D-C40 58 118 213
SD59-2D-C40 59 120 215
SD60-2D-C40 60 122 217
