3D WCMT U Drill

Catalog：

Indexable Insert Drill

>> Messages
>> Contact
• Effective drilling depth is 3 x Diameter.
• Drilling diameters are from 14mm to 60mm.
• Double twisted internal coolant holes.
• Match with Sumitomo WCMX/WCMT insert and Mechin WCMT insert.
• Configure high strength screw and torx key.
• Multi function drilling design is available.
• Full series stocked.

keyword：Drilling,Boring

Detail

3D WCM* insert U drill, indexable insert drill



Highlights of Mechin u drill

　　★ Double helical cooling holes.

　　★ Two times heat treatment.

　　★ High strength alloy steel drill holder.

　　★ High strength screws and torx keys.



Advantages of Mechin u drill

　　★ Much better chip evacuation.

　　★ Longer drilling life span.

　　★ Higher rigidity and toughness.

　　★ Faster penetration rate.



Recommended Materials

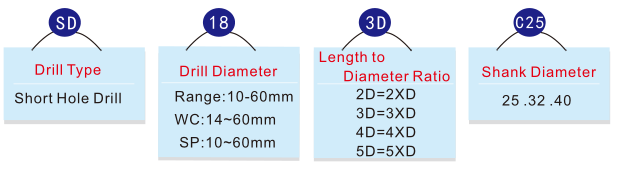

Product Naming of Mechin WC Series U Drills

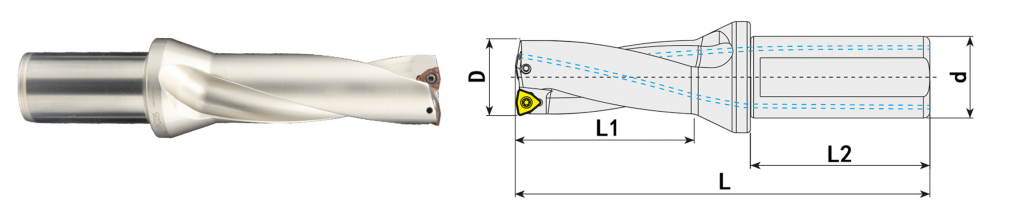

Overall Dimensions of 3D WC Insert U drills

Code D L1 L L2 d Insert Screw Torx Key
SD14-3D-C25 14 44 121 56 25 WCMT030208 M2.5*5 T8
SD14.5-3D-C25 14.5 45.5 122.5 56 25 WCMT030208 M2.5*6 T8
SD15-3D-C25 15 47 122
SD15.5-3D-C25 15.5 48.5 123.5
SD16-3D-C25 16 50 125
SD16.5-3D-C25 16.5 51.5 126.5
SD17-3D-C25 17 53 128
SD17.5-3D-C25 17.5 54.5 129.5
SD18-3D-C25 18 56 131
SD18.5-3D-C25 18.5 57.5 132.5
SD19-3D-C25 19 59 132
SD19.5-3D-C25 19.5 60.5 133.5
SD20-3D-C25 20 62 135.5 WCMT040208
SD20.5-3D-C25 20.5 63.5 137.5
SD21-3D-C25 21 65 139
SD21.5-3D-C25 21.5 66.5 140.5
SD22-3D-C25 22 68 142
SD22.5-3D-C25 22.5 69.5 143.5
SD23-3D-C25 23 71 145
SD23.5-3D-C25 23.5 72.5 146.5
SD24-3D-C25 24 74 148 WCMT050308 M3*8
SD24.5-3D-C25 24.5 75.5 149.5
SD25-3D-C32 25 77 161 60 32
SD25.5-3D-C32 25.5 78.5 162.5
SD26-3D-C32 26 80 164
SD26.5-3D-C32 26.5 81.5 165.5
SD27-3D-C32 27 83 167
SD27.5-3D-C32 27.5 84.5 168.5
SD28-3D-C32 28 86 170
SD28.5-3D-C32 28.5 87.5 171.5
SD29-3D-C32 29 89 173
SD29.5-3D-C32 29.5 90.5 174.5
SD30-3D-C32 30 92 176
SD30.5-3D-C32 30.5 93.5 176.5
SD31-3D-C32 31 95 178 WCMT06T308 M3.5*10 T15
SD31.5-3D-C32 31.5 96.5 178.5
SD32-3D-C32 32 98 181
SD32.5-3D-C32 32.5 99.5 181.5
SD33-3D-C32 33 101 184
SD33.5-3D-C32 33.5 102.5 184.5
SD34-3D-C32 34 104 186
SD34.5-3D-C32 34.5 105.5 186.5
SD35-3D-C32 35 107 190
SD35.5-3D-C32 35.5 108.5 190.5
SD36-3D-C32 36 110 193
SD36.5-3D-C32 36.5 111.5 194.5
SD37-3D-C32 37 113 196
SD37.5-3D-C32 37.5 114.5 198.5
SD38-3D-C32 38 116 196.5
SD38.5-3D-C32 38.5 117.5 198
SD39-3D-C32 39 119 197
SD39.5-3D-C32 39.5 120.5 199.5
SD40-3D-C32 40 122 200
SD41-3D-C32 41 125 205
SD42-3D-C40 42 128 223 70 40 WCMT080412 M4*10
SD43-3D-C40 43 131 226
SD44-3D-C40 44 134 229
SD45-3D-C40 45 137 232
SD46-3D-C40 46 140 235
SD47-3D-C40 47 143 238
SD48-3D-C40 48 146 241
SD49-3D-C40 49 149 244
SD50-3D-C40 50 152 247
SD51-3D-C40 51 155 250
SD52-3D-C40 52 158 253
SD53-3D-C40 53 161 256
SD54-3D-C40 54 164 259
SD55-3D-C40 55 167 262
SD56-3D-C40 56 170 265
SD57-3D-C40 57 173 268
SD58-3D-C40 58 176 271
SD59-3D-C40 59 179 274
SD60-3D-C40 60 182 277
