4D WCMT U Drill

Catalog：

Indexable Insert Drill

>> Messages
>> Contact
• Effective drilling depth is 4 x Diameter.
• Drilling diameters are from 14mm to 60mm.
• Double twisted internal coolant holes.
• Match with Sumitomo WCMX/WCMT insert and Mechin WCMT insert.
• Configure high strength screw and torx key.
• Multi function drilling design is available.
• Full series stocked.

keyword：Drilling,Boring

Detail

4D WCM* insert U drill, indexable insert drill



Highlights of Mechin u drill

　　★ Double helical cooling holes.

　　★ Two times heat treatment.

　　★ High strength alloy steel drill holder.

　　★ High strength screws and torx keys.



Advantages of Mechin u drill

　　★ Much better chip evacuation.

　　★ Longer drilling life span.

　　★ Higher rigidity and toughness.

　　★ Faster penetration rate.



Recommended Materials

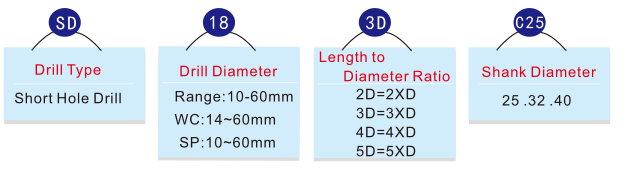

Product Naming of Mechin WC Series U Drills

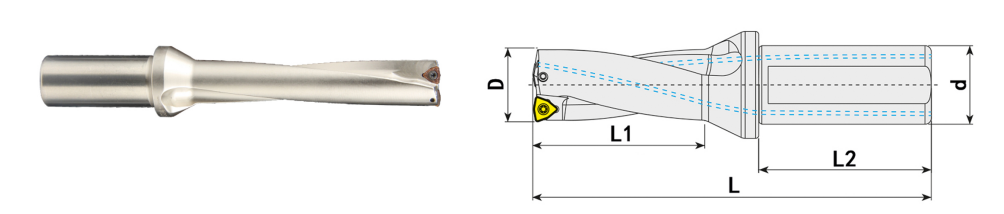

Overall Dimensions of 4D WC Insert U drills



Code D L1 L L2 d Insert Screw Torx Key
SD14-4D-C25 14 58 135 56 25 WCMT030208 M2.5*5 T8
SD14.5-4D-C25 14.5 60 137 56 25 WCMT030208 M2.5*6 T8
SD15-4D-C25 15 62 137
SD15.5-4D-C25 15.5 64 139
SD16-4D-C25 16 66 141
SD16.5-4D-C25 16.5 68 143
SD17-4D-C25 17 70 145
SD17.5-4D-C25 17.5 72 147
SD18-4D-C25 18 74 149
SD18.5-4D-C25 18.5 76 151
SD19-4D-C25 19 78 151
SD19.5-4D-C25 19.5 80 153
SD20-4D-C25 20 82 155.5 WCMT040208
SD20.5-4D-C25 20.5 84 158
SD21-4D-C25 21 86 160
SD21.5-4D-C25 21.5 88 162
SD22-4D-C25 22 90 164
SD22.5-4D-C25 22.5 92 166
SD23-4D-C25 23 94 168
SD23.5-4D-C25 23.5 96 170
SD24-4D-C25 24 98 172 WCMT050308 M3*8
SD24.5-4D-C25 24.5 100 174
SD25-4D-C32 25 102 186 60 32
SD25.5-4D-C32 25.5 104 188
SD26-4D-C32 26 106 190
SD26.5-4D-C32 26.5 108 192
SD27-4D-C32 27 110 194
SD27.5-4D-C32 27.5 112 196
SD28-4D-C32 28 114 198
SD28.5-4D-C32 28.5 116 200
SD29-4D-C32 29 118 202
SD29.5-4D-C32 29.5 120 204
SD30-4D-C32 30 122 206
SD30.5-4D-C32 30.5 124 207
SD31-4D-C32 31 126 209 WCMT06T308 M3.5*10 T15
SD31.5-4D-C32 31.5 128 210
SD32-4D-C32 32 130 213
SD32.5-4D-C32 32.5 132 214
SD33-4D-C32 33 134 217
SD33.5-4D-C32 33.5 136 218
SD34-4D-C32 34 138 220
SD34.5-4D-C32 34.5 140 221
SD35-4D-C32 35 142 225
SD35.5-4D-C32 35.5 144 226
SD36-4D-C32 36 146 229
SD36.5-4D-C32 36.5 148 231
SD37-4D-C32 37 150 233
SD37.5-4D-C32 37.5 152 236
SD38-4D-C32 38 154 234.5
SD38.5-4D-C32 38.5 156 236.5
SD39-4D-C32 39 158 240
SD39.5-4D-C32 39.5 160 239
SD40-4D-C32 40 162 240
SD41-4D-C32 41 166 246
SD42-4D-C40 42 170 265 70 40 WCMT080412 M4*10
SD43-4D-C40 43 174 269
SD44-4D-C40 44 178 273
SD45-4D-C40 45 182 277
SD46-4D-C40 46 186 281
SD47-4D-C40 47 190 285
SD48-4D-C40 48 194 289
SD49-4D-C40 49 198 293
SD50-4D-C40 50 202 297
SD51-4D-C40 51 206 301
SD52-4D-C40 52 210 305
SD53-4D-C40 53 214 309
SD54-4D-C40 54 218 313
SD55-4D-C40 55 222 317
SD56-4D-C40 56 226 321
SD57-4D-C40 57 230 325
SD58-4D-C40 58 234 329
SD59-4D-C40 59 238 333
SD60-4D-C40 60 242 337
