5D WCMT U Drill

Catalog：

Indexable Insert Drill

>> Messages
>> Contact
• Effective drilling depth is 5 x Diameter.
• Drilling diameters are from 20mm to 60mm.
• Double twisted internal coolant holes.
• Match with Sumitomo WCMX/WCMT insert and Mechin WCMT insert.
• Configure high strength screw and torx key.
• Multi function drilling design is available.
• Full series stocked.

keyword：Drilling,Boring

Detail

5D WCM* insert U drill, indexable insert drill



Highlights of Mechin u drill

　　★ Double helical cooling holes.

　　★ Two times heat treatment.

　　★ High strength alloy steel drill holder.

　　★ High strength screws and torx keys.



Advantages of Mechin u drill

　　★ Much better chip evacuation.

　　★ Longer drilling life span.

　　★ Higher rigidity and toughness.

　　★ Faster penetration rate.



Recommended Materials

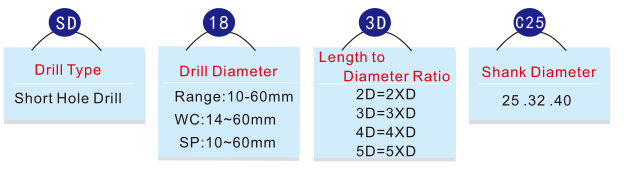

Product Naming of Mechin WC Series U Drills

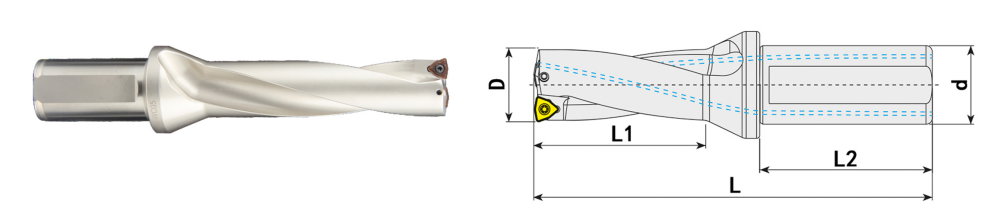

Overall Dimensions of 5D WC Insert U drills



Code D L1 L L2 d Insert Screw Torx Key
SD14-5D-C25 14 72 149 56 25 WCMT030208 M2.5*5 T8
SD14.5-5D-C25 14.5 74.5 151.5 56 25 WCMT030208 M2.5*6 T8
SD15-5D-C25 15 77 152
SD15.5-5D-C25 15.5 79.5 154.5
SD16-5D-C25 16 82 157
SD16.5-5D-C25 16.5 84.5 159.5
SD17-5D-C25 17 87 162
SD17.5-5D-C25 17.5 89.5 164.5
SD18-5D-C25 18 92 167
SD18.5-5D-C25 18.5 94.5 169.5
SD19-5D-C25 19 97 170
SD19.5-5D-C25 19.5 99.5 172.5
SD20-5D-C25 20 102 175.5 WCMT040208
SD20.5-5D-C25 20.5 104.5 178.5
SD21-5D-C25 21 107 181
SD21.5-5D-C25 21.5 109.5 183.5
SD22-5D-C25 22 112 186
SD22.5-5D-C25 22.5 114.5 188.5
SD23-5D-C25 23 117 191
SD23.5-5D-C25 23.5 119.5 193.5
SD24-5D-C25 24 122 196 WCMT050308 M3*8
SD24.5-5D-C25 24.5 124.5 198.5
SD25-5D-C32 25 127 211 60 32
SD25.5-5D-C32 25.5 129.5 213.5
SD26-5D-C32 26 132 216
SD26.5-5D-C32 26.5 134.5 218.5
SD27-5D-C32 27 137 221
SD27.5-5D-C32 27.5 139.5 223.5
SD28-5D-C32 28 142 226
SD28.5-5D-C32 28.5 144.5 228.5
SD29-5D-C32 29 147 231
SD29.5-5D-C32 29.5 149.5 233.5
SD30-5D-C32 30 152 236
SD30.5-5D-C32 30.5 154.5 237.5
SD31-5D-C32 31 157 240 WCMT06T308 M3.5*10 T15
SD31.5-5D-C32 31.5 159.5 241.5
SD32-5D-C32 32 162 245
SD32.5-5D-C32 32.5 164.5 246.5
SD33-5D-C32 33 167 250
SD33.5-5D-C32 33.5 169.5 251.5
SD34-5D-C32 34 172 254
SD34.5-5D-C32 34.5 174.5 255.5
SD35-5D-C32 35 177 260
SD35.5-5D-C32 35.5 179.5 261.5
SD36-5D-C32 36 182 265
SD36.5-5D-C32 36.5 184.5 267.5
SD37-5D-C32 37 187 270
SD37.5-5D-C32 37.5 189.5 273.5
SD38-5D-C32 38 192 272.5
SD38.5-5D-C32 38.5 194.5 275
SD39-5D-C32 39 197 279
SD39.5-5D-C32 39.5 199.5 278.5
SD40-5D-C32 40 202 280
SD41-5D-C32 41 207 287
SD42-5D-C40 42 212 307 70 40 WCMT080412 M4*10
SD43-5D-C40 43 217 312
SD44-5D-C40 44 222 317
SD45-5D-C40 45 227 322
SD46-5D-C40 46 232 327
SD47-5D-C40 47 137 332
SD48-5D-C40 48 242 337
SD49-5D-C40 49 247 342
SD50-5D-C40 50 252 347
SD51-5D-C40 51 257 352
SD52-5D-C40 52 262 257
SD53-5D-C40 53 267 362
SD54-5D-C40 54 272 367
SD55-5D-C40 55 277 372
SD56-5D-C40 56 282 377
SD57-5D-C40 57 287 382
SD58-5D-C40 58 292 387
SD59-5D-C40 59 297 392
SD60-5D-C40 60 302 397
