3xD Solid Carbide Drill

Catalog：

Solid Carbide Drill

>> Messages

>> Contact

• Effective drilling depth is 3 x Diameter.
• Drilling diameters are from 3mm to 16mm.
• Dimension style refers to DIN6537.
• Shank diameter refers to DIN6535HA.
• Drill edge diameter tolerance is M7.
• Surface nano coated against different materials.
• Internal coolant oil holes are optional.
• Regrinding service is available.

keyword：Drilling,Boring

Detail

CD Series Solid Carbide Drill

Highlights of Mechin Solid Carbide Drill

　　★ Unique main edge angle design.

　　★ Special chip removal groove style.

　　★ Outstanding centering capability.

　　★ Ultra fine grain carbide raw material.

　　★ Precision ANCA 5 axis grinding center.

Advantages of Mechin Solid Carbide Drill

　　★ Better chip removal performance.

　　★ More stable hole pecision and surface.

　　★ Longer drill life and higher productivity.

　　★ Lower drilling resistance.

Recommended Materials

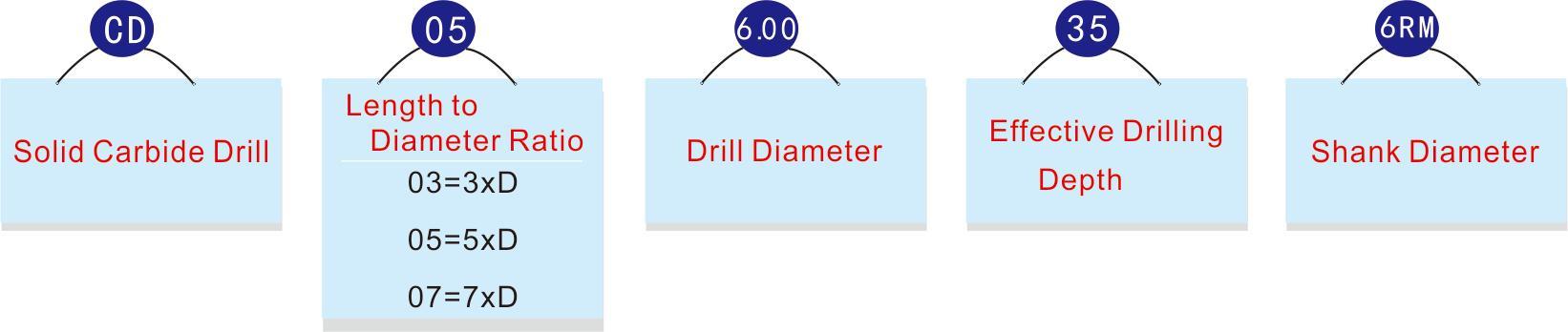

Product Naming for Solid Carbide Drill

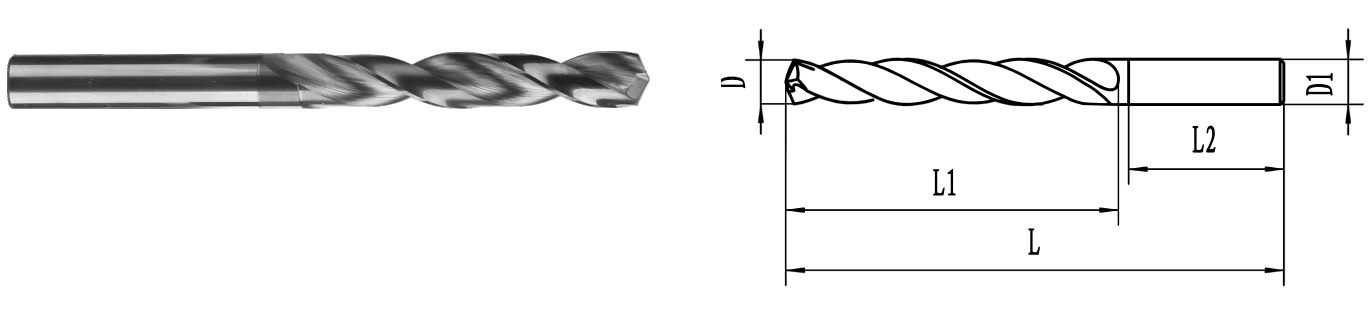

Overall dimensions of Mechin CD Series Solid Carbide Drills

3 x D Solid Carbide Drill
Code Range	D range	L1	L2	D1	L
CD03-3.00..3.70-20-4RM	3..3.7	20	36	4	62
CD03-3.80..4.00-24-4RM	3.8..4	24	36	4	66
CD03-4.10...4.70-24-6RM	4.1...4.7	24	36	6	66
CD03-4.80...6.00-28-6RM	4.8...6	28	36	6	66
CD03-6.10...7.00-34-8RM	6.1...7	34	36	8	79
CD03-7.10...8.00-41-8RM	7.1...8	41	36	8	79
CD03-8.10...10.00-47-10RM	8.1...10	47	40	10	89
CD03-10.10...12.00-55-12RM	10.1...12	55	45	12	102
CD03-12.10...14.00-60-14RM	12.1...14	60	45	14	107
CD03-14.10...16.00-65-16RM	14.1...16	65	48	16	115
