PRODUCTS
7xD Solid Carbide Drill
Catalog：
• Drilling diameters are from 3mm to 16mm.
• Dimension style refers to DIN6537.
• Shank diameter refers to DIN6535HA.
• Drill edge diameter tolerance is M7.
• Surface nano coated against different materials.
• Internal coolant oil holes are optional.
• Regrinding service is available.
keyword：Drilling,Boring
Detail
Highlights of Mechin Solid Carbide Drill
★ Unique main edge angle design.
★ Special chip removal groove style.
★ Outstanding centering capability.
★ Ultra fine grain carbide raw material.
★ Precision ANCA 5 axis grinding center.
Advantages of Mechin Solid Carbide Drill
★ Better chip removal performance.
★ More stable hole pecision and surface.
★ Longer drill life and higher productivity.
★ Lower drilling resistance.
Recommended Materials

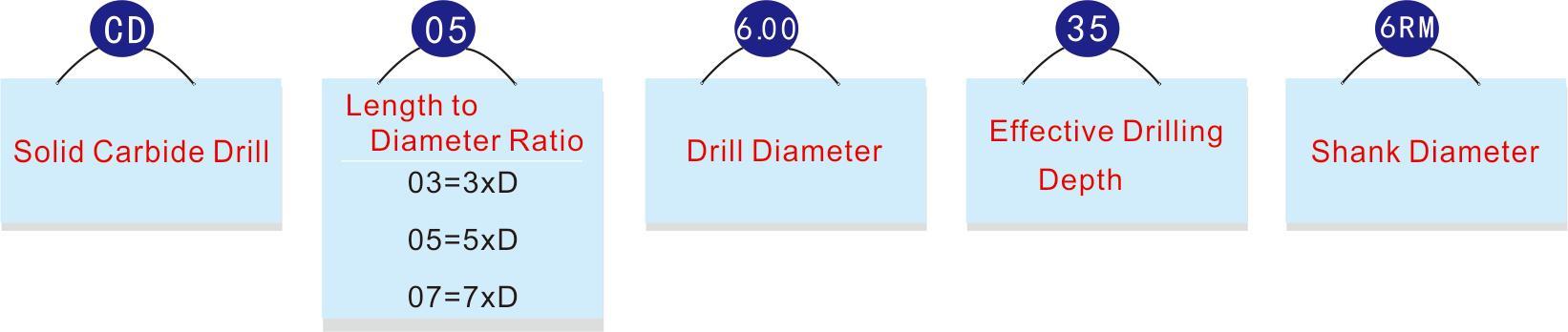

Product Naming for Solid Carbide Drill

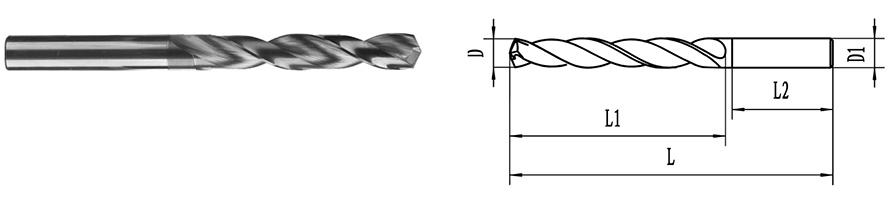

Overall dimensions of Mechin CD Series Solid Carbide Drills
| 7 x D Solid Carbide Drill | |||||
| Code Range | D range | L1 | L2 | D1 | L |
| CD07-3.00…3.7-37-4RM | 3…3.7 | 37 | 36 | 4 | 75 |
| CD07-3.80...4.00-47-4RM | 3.8...4 | 47 | 36 | 4 | 85 |
| CD07-4.10...6.00-28-6RM | 4.1...6 | 56 | 36 | 6 | 94 |
| CD07-6.10…7.00-67-8RM | 6.1...7 | 67 | 36 | 8 | 110 |
| CD07-7.10...8.00-72-8RM | 7.1...8 | 72 | 36 | 8 | 110 |
| CD07-8.10...10.00-80-10RM | 8.1...10 | 80 | 40 | 10 | 122 |
| CD07-10.10...12.00-94-12RM | 10.1...12 | 94 | 45 | 12 | 141 |
| CD07-12.10...14.00-105-14RM | 12.1...14 | 105 | 45 | 14 | 152 |
| CD07-14.10...16.00-115-16RM | 14.1...16 | 115 | 48 | 16 | 165 |
