U Drill Accessories

Catalog：

Indexable Insert Drill

>> Messages
>> Contact
• Reducing Sleeves.
• Eccentric Sleeves.
• Side Lock Oil Path Holders.
• Accessories can match all sizes U drills.
• Oil path holder radial run out less than 5um.

keyword：Drilling,Boring

Detail

Reducing and eccentric sleeves, side lock oil path holders





Highlights of U Drill Accessories

　　★ High precision sleeves for adjusting tool dimensions.

　　★ Oil path holder can provide solution for machines without internal coolant.

　　★ Easy to operate with excellent performance.

　　★ Built-in high quality bearings for oil path holders.



Overall dimensions of Mechin U Drill Accessories

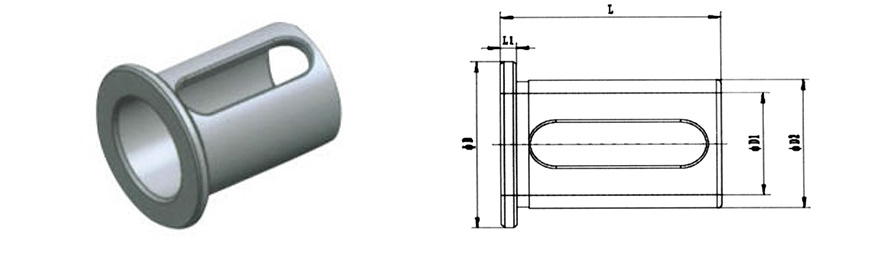

Reducing Sleeve

Reducing Sleeve Code D D1 D2 L L1
BJT-322062 49 20 32 62 5
BJT-322562 49 25 32 62 5
BJT-402065 58 20 40 65 6
BJT-402565 58 25 40 65 6
BJT-403265 58 32 40 65 6
BJT-502572 65 25 50 72 6
BJT-503272 65 32 50 72 6
BJT-504072 65 40 50 72 6

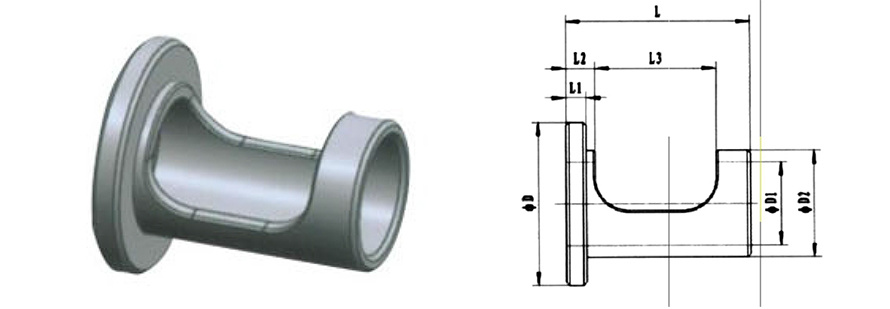

Eccentric Sleeve

Eccentric Sleeve Code D1 D2 D L L1 L2 L3 Adjusting diameter range Center Height Range
EC-2025-43 20 25 41 47 6 11 33 +0.4-0.2 +0.2-0.15
EC-2532-48 25 32 49 60 6 11 45 +0.4-0.2 +0.2-0.15
EC-3240-53 32 40 58 65 6 11 50 +0.4-0.2 +0.2-0.15
EC-4050-63 40 50 68 76 6 11 61 +0.4-0.2 +0.2-0.2

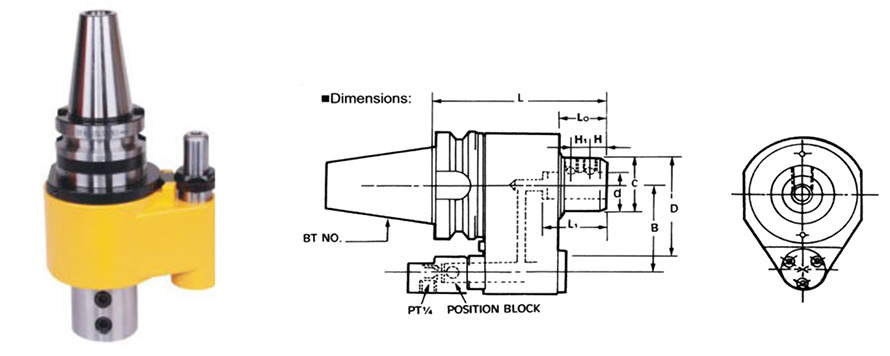

Oil Path Holder

Oil Path Holder Code d L B C D L0 L1 H H1
BT40-OSL32-155 32 155 65 53 90 50 60 15 15
BT40-OSL40-155 40 155 65 70 90 50 70 19 18
BT50-OSL32-160 32 160 80 54 100 50 60 15 15
BT50-OSL40-160 40 160 80 64 100 50 70 19 18
